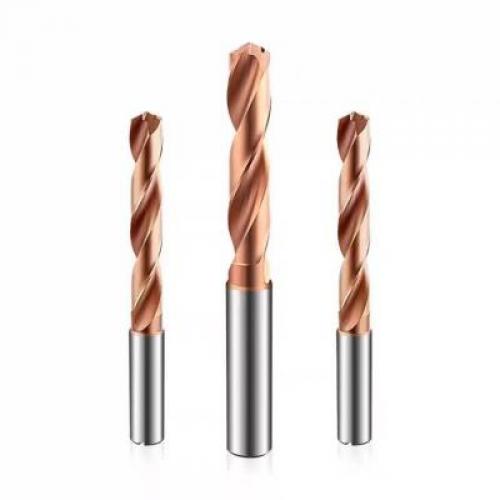

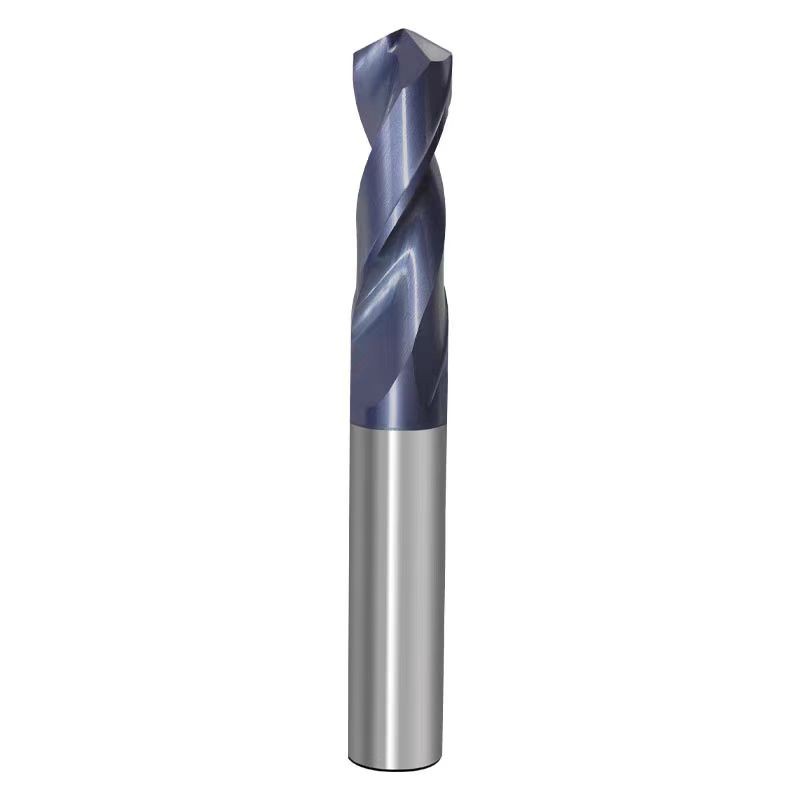

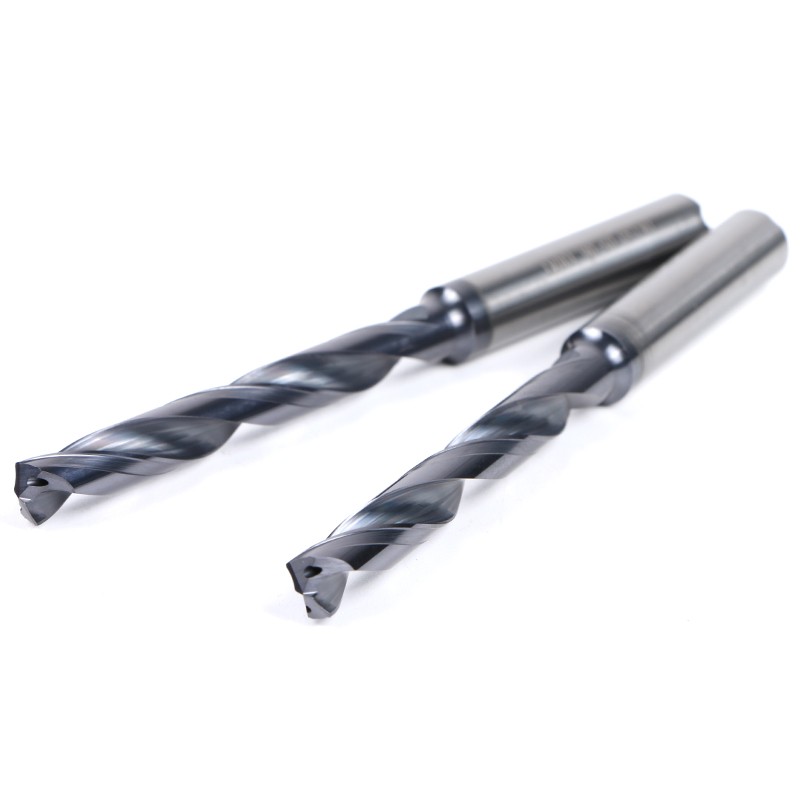

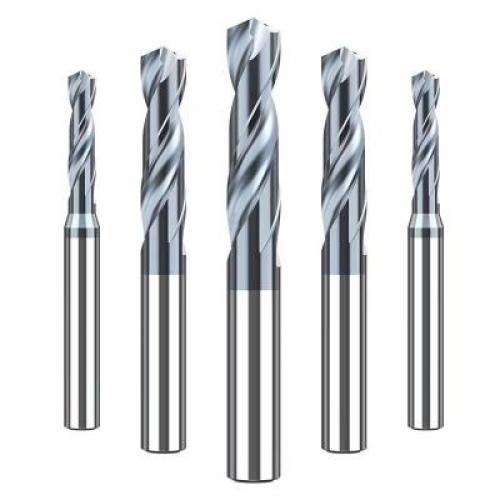

8XD Longer Drilling Hard Metal Cutting Tungsten Carbide Drill Bits

Point Angle: 118 ° ,140°, 135°
Material: Solid Carbide
Flute: 2 flutes
Coolant type: with
OEM: Acceptable

1.use high-quality tungsten material, high-precision imported Germany CNC machine

2.suitable for structural steel, alloy steel, stainless steel, cast iron and other common materials

3. Raw Materials: YG10X, ZK30UF, GU35UF

4. Diameter: 1mm-20mm

5. Sizes: 3XD; 5XD; 8XD;10XD;12XD

6. Different coatings for various application


D801 8XD Carbide Drills (External Coolant Hole)

Carbide Drills (External Coolant Hole) Type: D801 Series Unit：in mm
Type No.	Diameter	Flute Length	Overall Length	Shank Diameter
D801-D040	4.0	43	81	6
D801-D041	4.1	43	81	6
D801-D042	4.2	43	81	6
D801-D043	4.3	43	81	6
D801-D044	4.4	43	81	6
D801-D045	4.5	43	81	6
D801-D046	4.6	43	81	6
D801-D047	4.7	43	81	6
…	…
…	…
D801-D112	11.2	114	162	12
D801-D113	11.3	114	162	12
D801-D114	11.4	114	162	12
D801-D115	11.5	114	162	12
D801-D116	11.6	114	162	12
D801-D117	11.7	114	162	12
D801-D118	11.8	114	162	12
D801-D119	11.9	114	162	12
D801-D120	12.0	114	162	12
Note: Specifications for reference only. Please contact for detailed information.

D802 8XD Carbide Drills (Coolant Hole)

Carbide Drills (Internal Coolant Hole) Type: D802 Series Unit：in mm
Type No.	Diameter	Flute Length	Overall Length	Shank Diameter
D802-D040	4.0	43	81	6
D802-D041	4.1	43	81	6
D802-D042	4.2	43	81	6
D802-D043	4.3	43	81	6
D802-D044	4.4	43	81	6
D802-D045	4.5	43	81	6
D802-D046	4.6	43	81	6
D802-D047	4.7	43	81	6
…	…
…	…
D802-D112	11.2	114	162	12
D802-D113	11.3	114	162	12
D802-D114	11.4	114	162	12
D802-D115	11.5	114	162	12
D802-D116	11.6	114	162	12
D802-D117	11.7	114	162	12
D802-D118	11.8	114	162	12
D802-D119	11.9	114	162	12
D802-D120	12.0	114	162	12
Note: Specifications for reference only. Please contact for detailed information.
