Point Angle: 118 ° OR 140°
Material: Solid Carbide
Coolant type: with or without
OEM: Acceptable

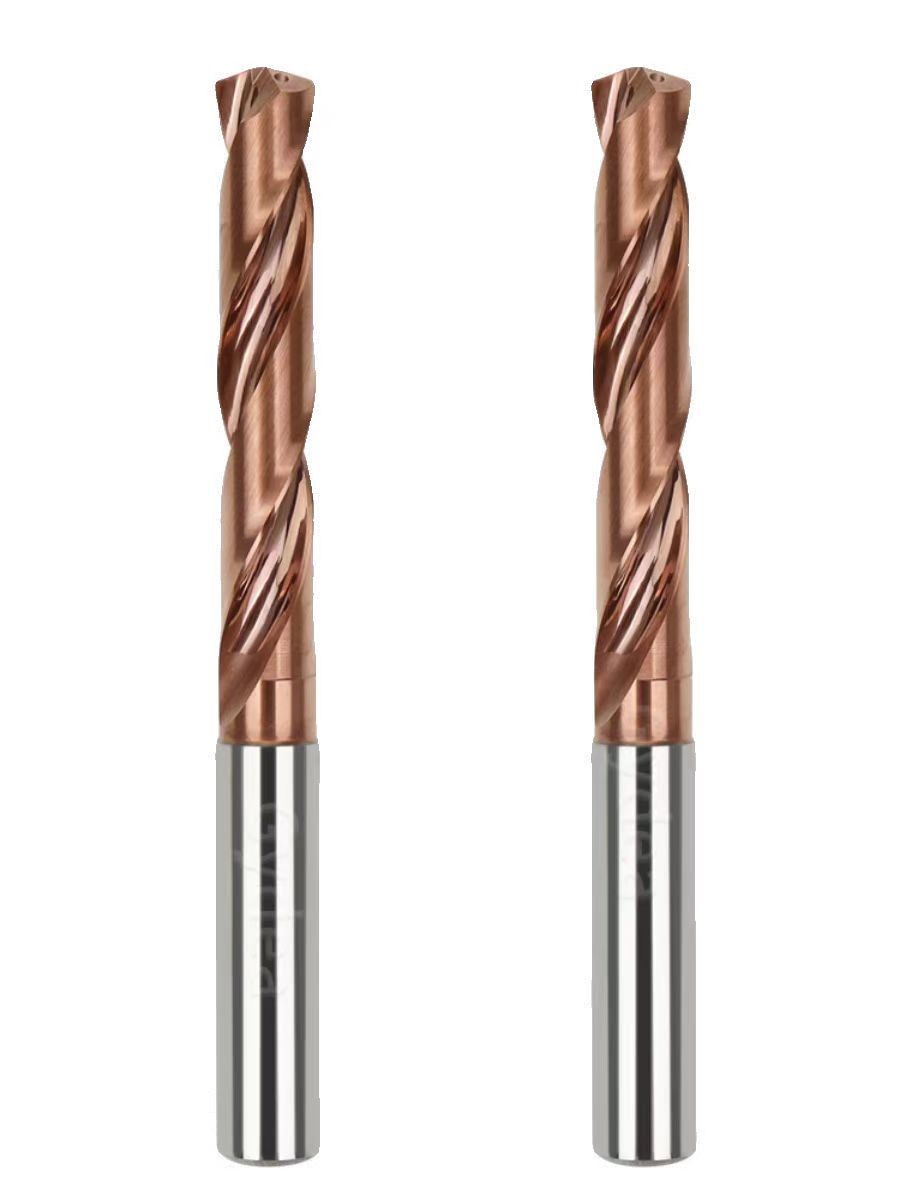

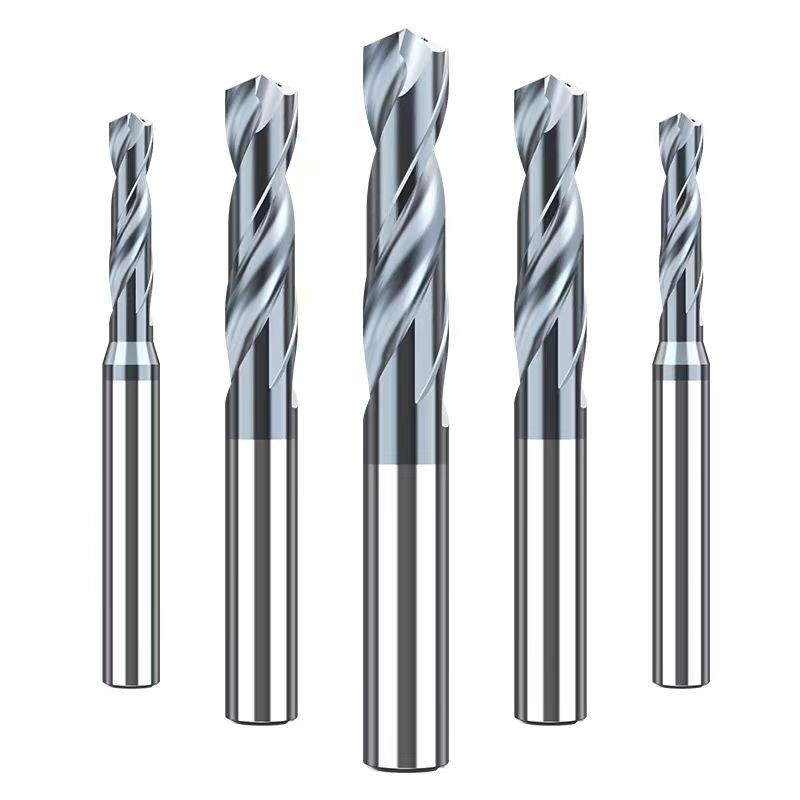

Coolant Solid Carbide Drills with coating for carbon steel
1.use high-quality tungsten material, high-precision imported Germany CNC machine
2.suitable for structural steel, alloy steel, stainless steel, cast iron and other common materials
3. Raw Materials: YG10X, ZK30UF, GU35UF
4. Diameter: 1mm-20mm
5. Sizes: 3XD; 5XD; 8XD;10XD;12XD
6. Different coatings for various application
D302 3XD Carbide Drills (Coolant Hole)
| Carbide Drills (With Coolant Hole) Type: D302 Unit：in mm | ||||
| Type No. | Diameter | Flute Length | Overall Length | Shank Diameter |
| D302-D030 | 3.0 | 20 | 62 | 6 |
| D302-D031 | 3.1 | 20 | 62 | 6 |
| D302-D032 | 3.2 | 20 | 62 | 6 |
| D302-D033 | 3.3 | 20 | 62 | 6 |
| D302-D034 | 3.4 | 20 | 62 | 6 |
| D302-D035 | 3.5 | 20 | 62 | 6 |
| D302-D036 | 3.6 | 20 | 62 | 6 |
| D302-D037 | 3.7 | 20 | 62 | 6 |
| … | … | … | … | … |
| … | … | … | … | … |
| D302-D170 | 17.0 | 73 | 123 | 18 |
| D302-D175 | 17.5 | 73 | 123 | 18 |
| D302-D178 | 17.8 | 73 | 123 | 18 |
| D302-D180 | 18.0 | 73 | 123 | 18 |
| D302-D185 | 18.5 | 79 | 131 | 20 |
| D302-D190 | 19.0 | 79 | 131 | 20 |
| D302-D195 | 19.5 | 79 | 131 | 20 |
| D302-D198 | 19.8 | 79 | 131 | 20 |
| D302-D200 | 20.0 | 79 | 131 | 20 |
| Note: Specifications for reference only. Please contact for detailed information. | ||||
D502 5XD Carbide Drills (Coolant Hole)
| Carbide Drills (With Coolant Hole) Type: D502 Series Unit：in mm | ||||
| Type No. | Diameter | Flute Length | Overall Length | Shank Diameter |
| D502-D030 | 3.0 | 28 | 66 | 6 |
| D502-D031 | 3.1 | 28 | 66 | 6 |
| D502-D032 | 3.2 | 28 | 66 | 6 |
| D502-D033 | 3.3 | 28 | 66 | 6 |
| D502-D034 | 3.4 | 28 | 66 | 6 |
| D502-D035 | 3.5 | 28 | 66 | 6 |
| D502-D036 | 3.6 | 28 | 66 | 6 |
| D502-D037 | 3.7 | 28 | 66 | 6 |
| … | … | |||
| … | … | |||
| D502-D110 | 11.0 | 71 | 118 | 12 |
| D502-D115 | 11.5 | 71 | 118 | 12 |
| D502-D120 | 12.0 | 71 | 118 | 12 |
| D502-D125 | 12.5 | 77 | 124 | 14 |
| D502-D130 | 13.0 | 77 | 124 | 14 |
| D502-D140 | 14.0 | 77 | 124 | 14 |
| D502-D150 | 15.0 | 83 | 133 | 16 |
| D502-D160 | 16.0 | 83 | 133 | 16 |
| D502-D200 | 20.0 | 101 | 153 | 20 |
| Note: Specifications for reference only. Please contact for detailed information. | ||||
