Point Angle: 118 ° OR 140°
Material: Solid Carbide
Coolant type: with or without
OEM: Acceptable

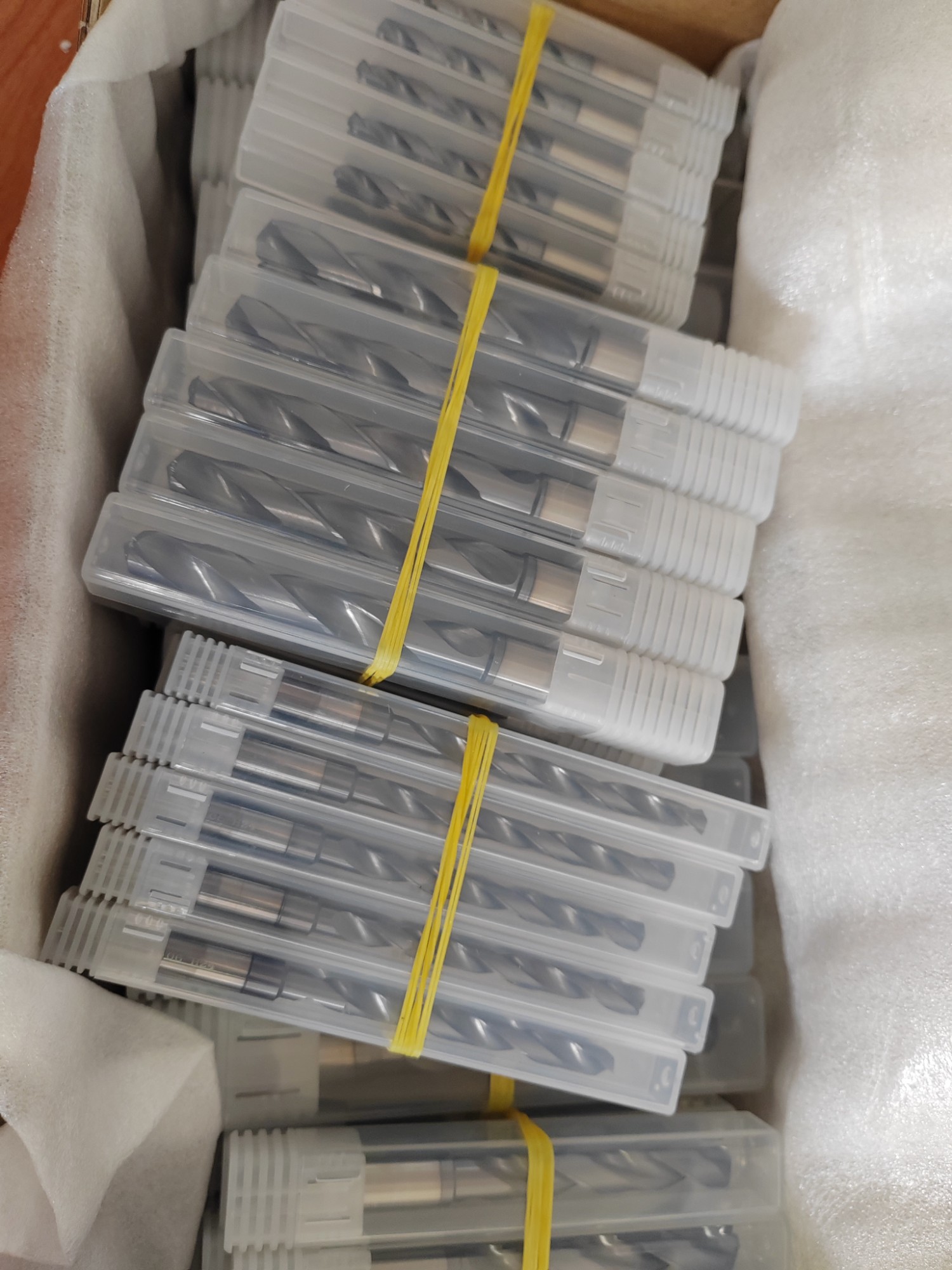

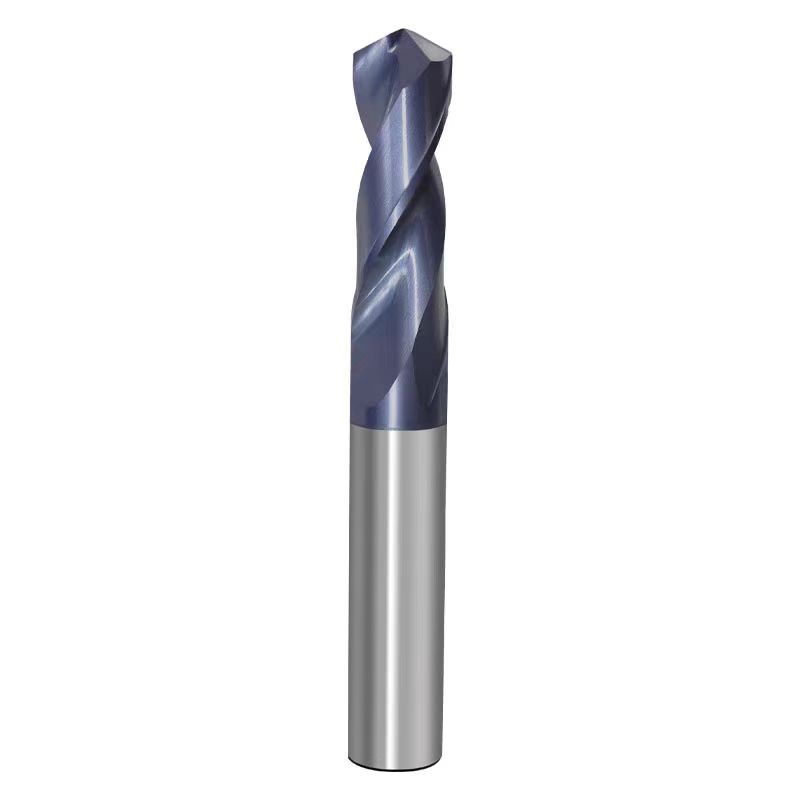

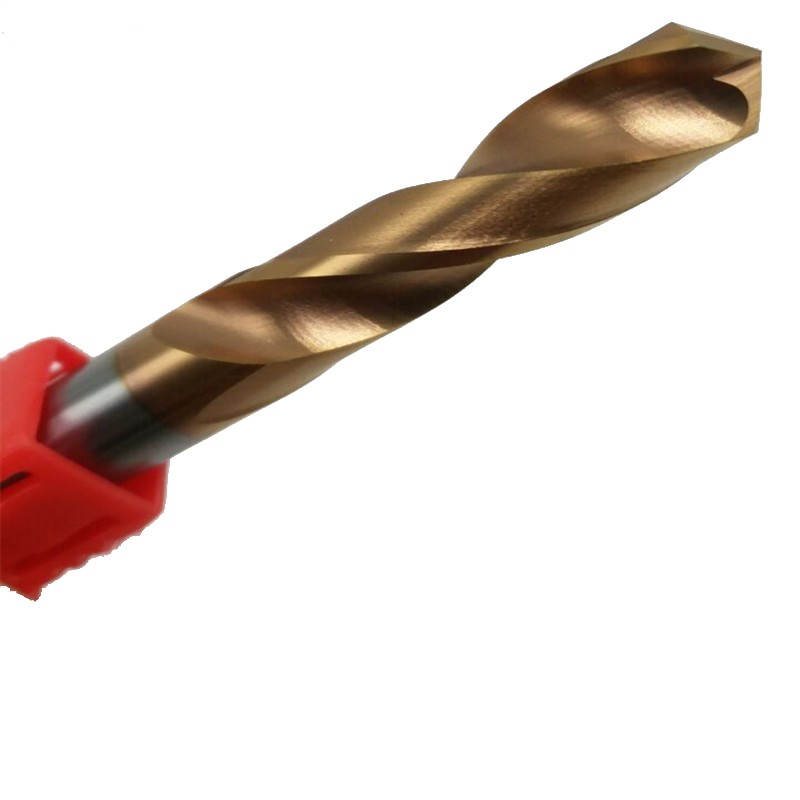

3D5D 8D 10D 12D Tungsten Solid Carbide Twist Drills
1.use high-quality tungsten material, high-precision imported Germany CNC machine
2.suitable for structural steel, alloy steel, stainless steel, cast iron and other common materials
3. Raw Materials: YG10X, ZK30UF, GU35UF
4. Diameter: 1mm-20mm
5. Sizes: 3XD; 5XD; 8XD;10XD;12XD
D301 Carbide Drills (External Coolant Hole)
Carbide Drills (External Coolant Hole) Type: D301 Unit:in mm | ||||
Type No. | Diameter | Flute Length | Overall Length | Shank Diameter |
D301-D030 | 3.0 | 20 | 62 | 6 |
D301-D031 | 3.1 | 20 | 62 | 6 |
D301-D032 | 3.2 | 20 | 62 | 6 |
D301-D033 | 3.3 | 20 | 62 | 6 |
D301-D034 | 3.4 | 20 | 62 | 6 |
D301-D035 | 3.5 | 20 | 62 | 6 |
D301-D036 | 3.6 | 20 | 62 | 6 |
D301-D037 | 3.7 | 20 | 62 | 6 |
… | … | … | … | … |
… | … | … | … | … |
D301-D170 | 17.0 | 73 | 123 | 18 |
D301-D175 | 17.5 | 73 | 123 | 18 |
D301-D178 | 17.8 | 73 | 123 | 18 |
D301-D180 | 18.0 | 73 | 123 | 18 |
D301-D185 | 18.5 | 79 | 131 | 20 |
D301-D190 | 19.0 | 79 | 131 | 20 |
D301-D195 | 19.5 | 79 | 131 | 20 |
D301-D198 | 19.8 | 79 | 131 | 20 |
D301-D200 | 20.0 | 79 | 131 | 20 |
Note: Specifications for reference only. Please contact for detailed information. |
