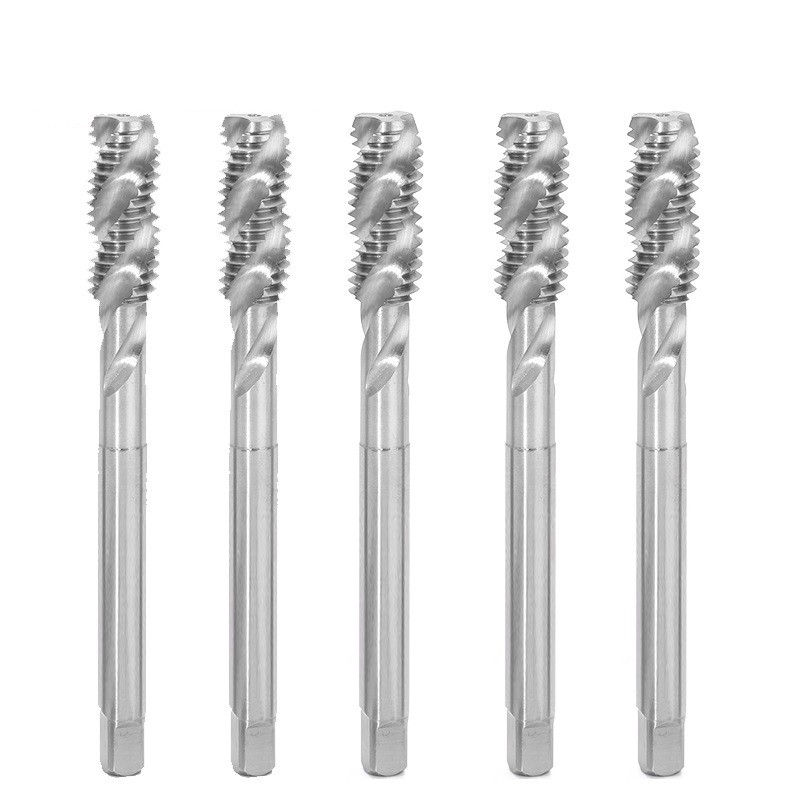

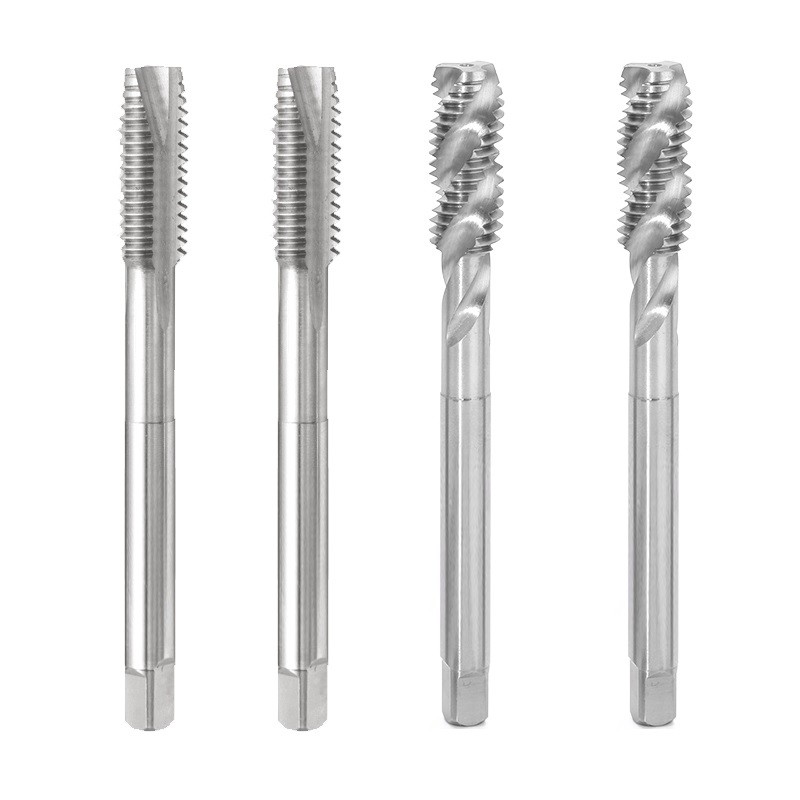

HSS Bright Taps for Aluminum Copper

Material: HSS-CO HSS
Sizes; metric sizes, UNC UNF
Standard: JIS ISO DIN

Application: It is used for processing blind holes and through holes with a hole depth of 1.5d-3d, and has the advantage of smooth chip removal.It is more suitable for processing blind hole threads, and the chips are discharged backwards during processing. Due to the helix angle, the actual cutting front angle of the tap will increase as the helix angle increases.

Sizes for reference

Size	Pitch	Shank	O.V.L.	Cutting Length	Tail	Flutes No
M2	0.4	3	42	8	2.5	3
M2.5	0.45	3	47	9.5	2.5	3
M3	0.5	4	46	11	3.2	3
M3.5	0.6	4	48	13	3.2	3
M4.5	0.7	5	52	13	4	3
M4.5	0.75	5	52	13	4	3
M5	0.8	5.5	60	16	4.5	3
M6	1	6	62	19	4.5	3
M7	1	7	65	19	5.5	3
M8	1.25	6.3	72	22	5	3
M9	1.25	7	72	22	5.5	3
M10	1.5	7	75	24	5.5	3
M11	1.5	8	80	24	6	3
M12	1.75	8.5	82	29	6.5	4
M14	2	10.5	88	30	8	4
M16	2	12.5	95	32	10	4
M18	2.5	14	100	37	11	4
M20	2.5	14	105	37	11	4
