Material: HSS, HSS-CO,HSS-PM
Sizes; metric sizes, UNC UNF
Standard: JIS ISO DIN

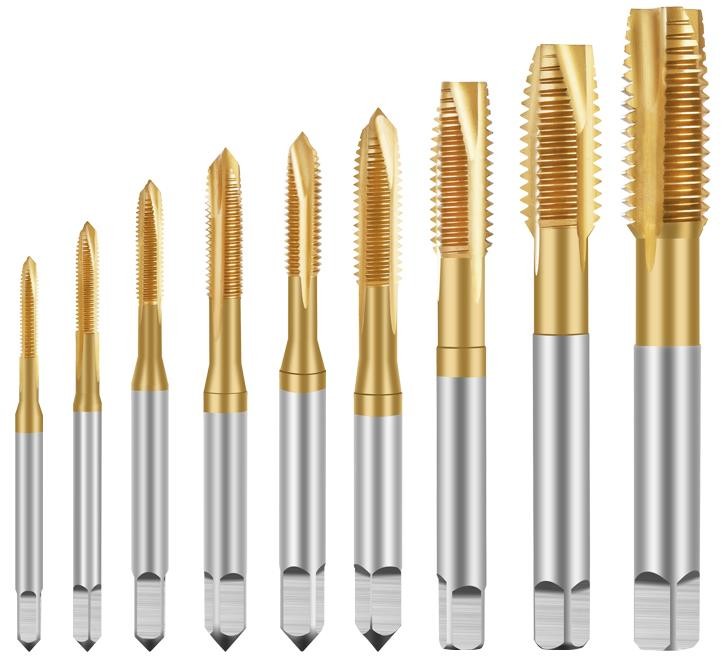

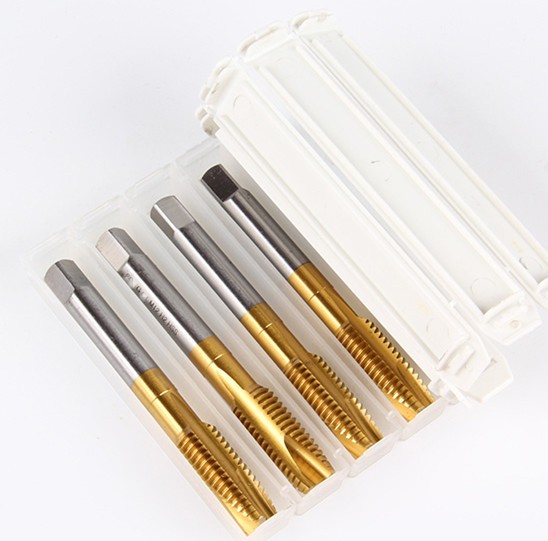

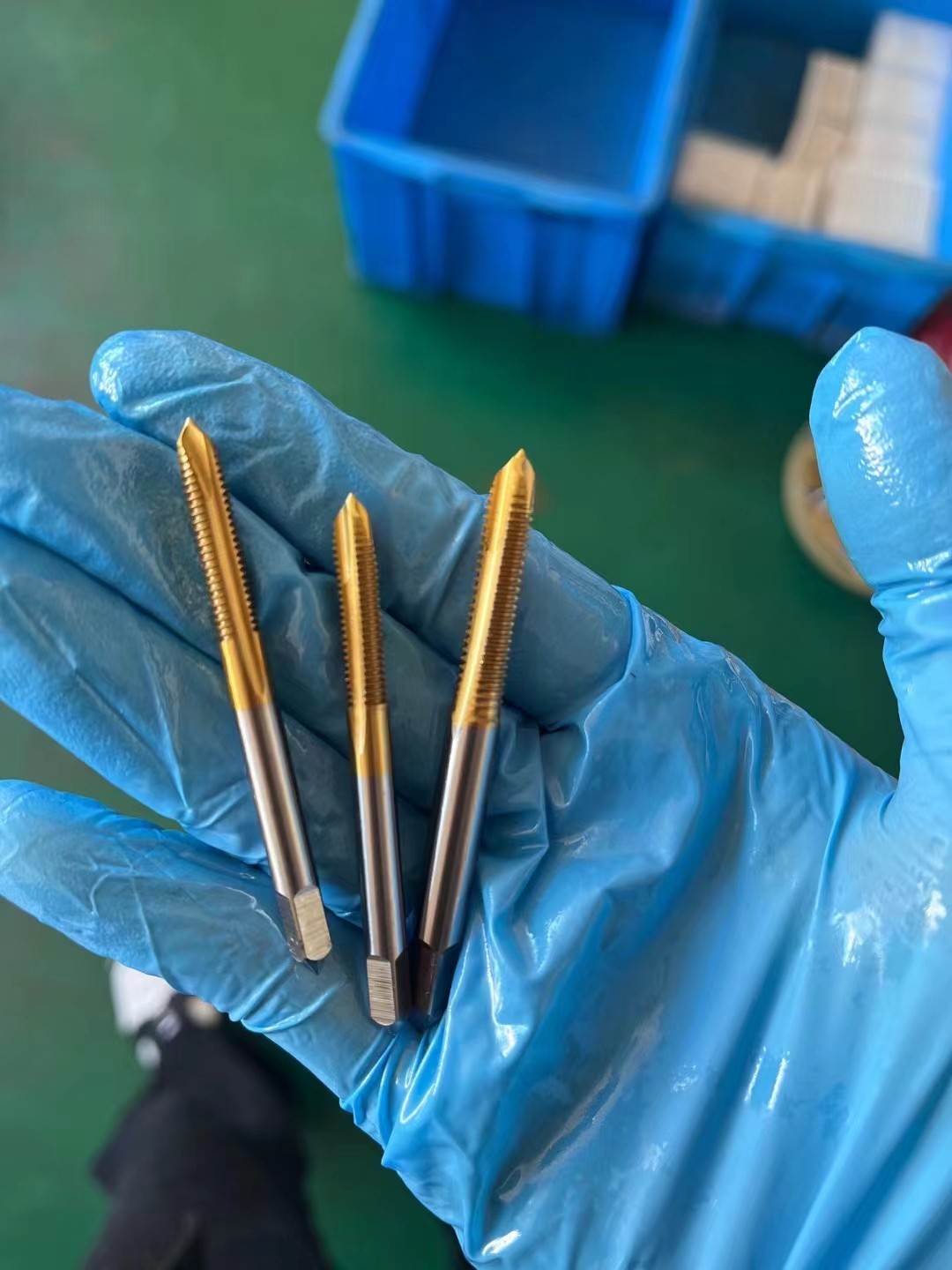

M6 M8 M12 HSS M2 Hand Machine Metric Taps
Application:Used for through hole processing, the hole depth can reach 3d-3.5d, with the advantages of smooth and light chip removal, high processing speed.
When machining threads, the chips are discharged forward. Its core size is designed to be relatively large, with good strength and can withstand large cutting forces. It is very effective in machining non-ferrous metals, stainless steel, and ferrous metals. Spiral point taps should be used preferentially for through-hole threads.
Sizes for reference
Size | Pitch | Shank | O.V.L. | Cutting Length | Tail | Flutes No |
M2 | 0.4 | 3 | 42 | 8 | 2.5 | 3 |
M2.5 | 0.45 | 3 | 47 | 9.5 | 2.5 | 3 |
M3 | 0.5 | 4 | 46 | 11 | 3.2 | 3 |
M3.5 | 0.6 | 4 | 48 | 13 | 3.2 | 3 |
M4.5 | 0.7 | 5 | 52 | 13 | 4 | 3 |
M4.5 | 0.75 | 5 | 52 | 13 | 4 | 3 |
M5 | 0.8 | 5.5 | 60 | 16 | 4.5 | 3 |
M6 | 1 | 6 | 62 | 19 | 4.5 | 3 |
M7 | 1 | 7 | 65 | 19 | 5.5 | 3 |
M8 | 1.25 | 6.3 | 72 | 22 | 5 | 3 |
M9 | 1.25 | 7 | 72 | 22 | 5.5 | 3 |
M10 | 1.5 | 7 | 75 | 24 | 5.5 | 3 |
M11 | 1.5 | 8 | 80 | 24 | 6 | 3 |
M12 | 1.75 | 8.5 | 82 | 29 | 6.5 | 4 |
M14 | 2 | 10.5 | 88 | 30 | 8 | 4 |
M16 | 2 | 12.5 | 95 | 32 | 10 | 4 |
M18 | 2.5 | 14 | 100 | 37 | 11 | 4 |
M20 | 2.5 | 14 | 105 | 37 | 11 | 4 |
