Material: HSS-CO
Sizes; metric sizes, UNC UNF
Standard: JIS ISO DIN

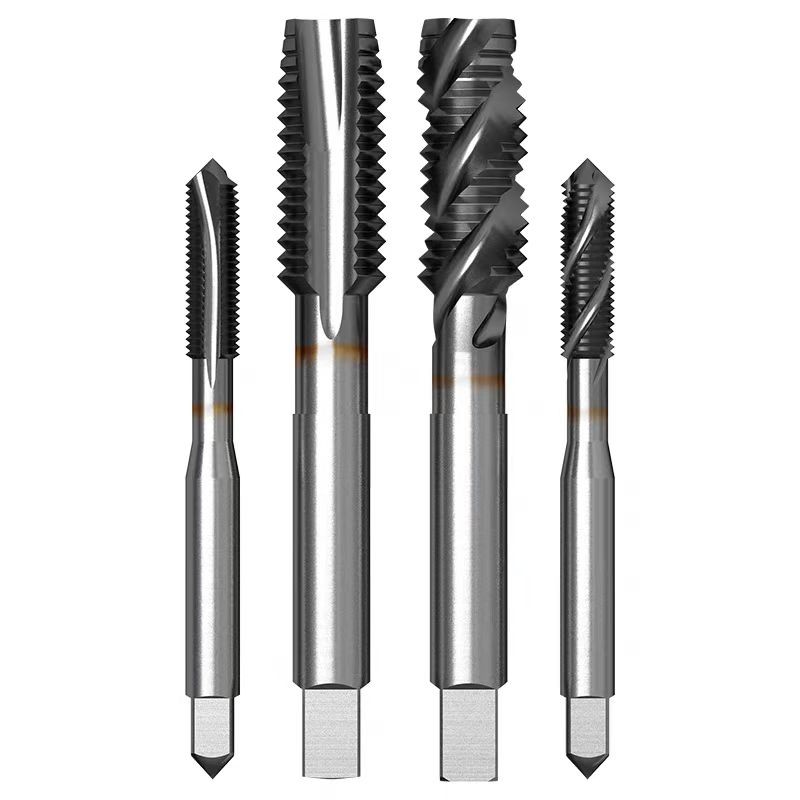

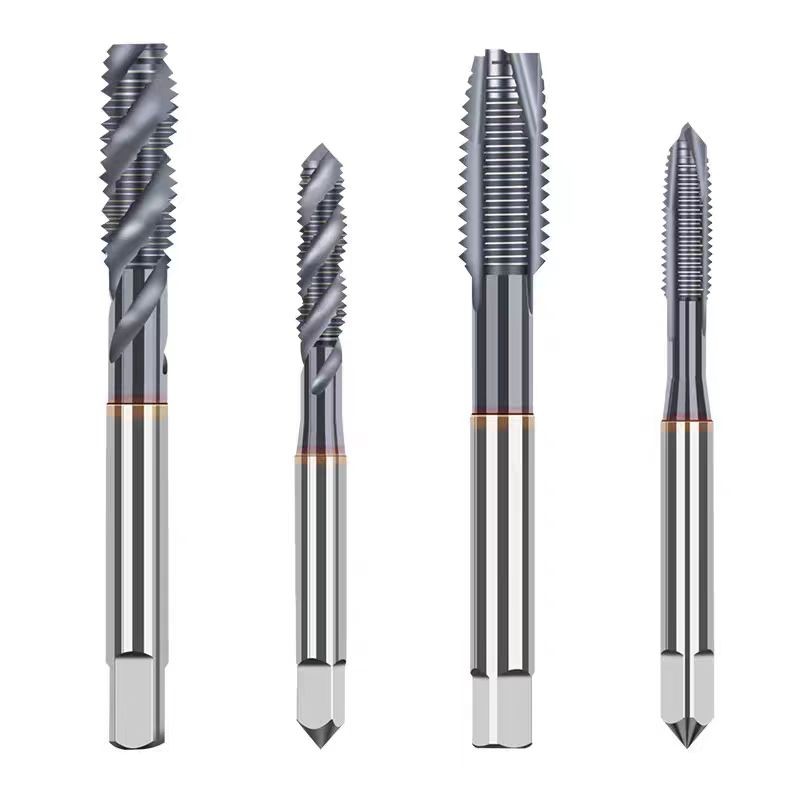

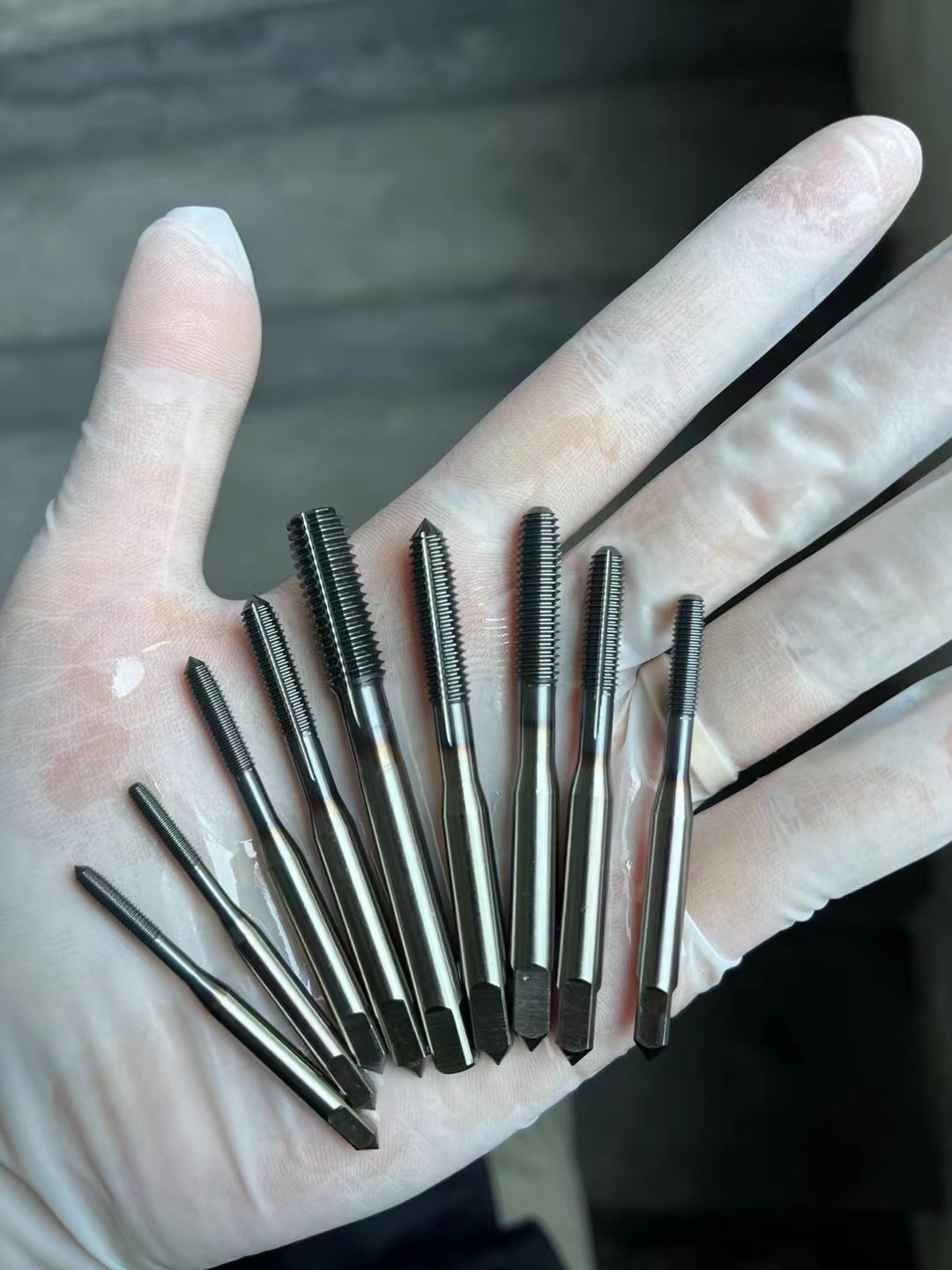

HSS-CO Machine Metric Straight Taps with TICN coating
Application: Used for through hole processing, the hole depth can reach 3d-3.5d, with the advantages of smooth and light chip removal, high processing speed.
When machining threads, the chips are discharged forward. Its core size is designed to be relatively large, with good strength and can withstand large cutting forces. It is very effective in machining non-ferrous metals, stainless steel, and ferrous metals. Spiral point taps should be used preferentially for through-hole threads
Sizes for reference
| Size | Pitch | Shank | O.V.L. | Cutting Length | Tail | Flutes No |
| M2 | 0.4 | 3 | 42 | 8 | 2.5 | 3 |
| M2.5 | 0.45 | 3 | 47 | 9.5 | 2.5 | 3 |
| M3 | 0.5 | 4 | 46 | 11 | 3.2 | 3 |
| M3.5 | 0.6 | 4 | 48 | 13 | 3.2 | 3 |
| M4.5 | 0.7 | 5 | 52 | 13 | 4 | 3 |
| M4.5 | 0.75 | 5 | 52 | 13 | 4 | 3 |
| M5 | 0.8 | 5.5 | 60 | 16 | 4.5 | 3 |
| M6 | 1 | 6 | 62 | 19 | 4.5 | 3 |
| M7 | 1 | 7 | 65 | 19 | 5.5 | 3 |
| M8 | 1.25 | 6.3 | 72 | 22 | 5 | 3 |
| M9 | 1.25 | 7 | 72 | 22 | 5.5 | 3 |
| M10 | 1.5 | 7 | 75 | 24 | 5.5 | 3 |
| M11 | 1.5 | 8 | 80 | 24 | 6 | 3 |
| M12 | 1.75 | 8.5 | 82 | 29 | 6.5 | 4 |
| M14 | 2 | 10.5 | 88 | 30 | 8 | 4 |
| M16 | 2 | 12.5 | 95 | 32 | 10 | 4 |
| M18 | 2.5 | 14 | 100 | 37 | 11 | 4 |
| M20 | 2.5 | 14 | 105 | 37 | 11 | 4 |
